Access an extensive global database with support for over 50,000 vehicle models. Enjoy free lifetime software updates to keep your alignment system accurate and up to date.
Equipped with a 5 MP industrial-grade camera that delivers precise measurements and adapts reliably to a wide range of workshop lighting conditions.
Supports 8–12 cm rolling compensation, allowing faster alignment procedures without repeated repositioning, saving valuable workshop time.
The intelligent tracking system automatically adjusts to the working space beneath the vehicle and expands to accommodate small scissor lifts, two-post lifts, and various workshop layouts.
The entire system is fully movable, allowing multiple service bays to share one alignment unit, maximizing workshop space and improving operational efficiency.
The lifting beam automatically detects obstacles during movement and stops immediately to protect technicians, vehicles, and equipment from accidental damage.

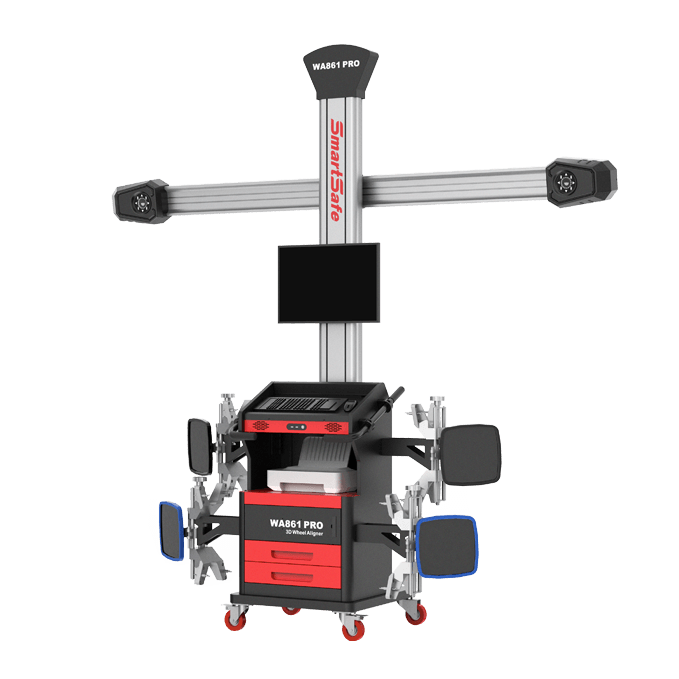

WA861 PRO 4 wheel alignment equipment has an ultra HD 5MP camera providing you with a better and wider view. In the shop, it can solve more problems for you
| Functions | Description | ✓ |
|---|---|---|
| Four-wheel alignment measurement | Supports standard measurement and quick measurement, and measures key parameters such as toe-in, camber, caster angle, kingpin inclination, and thrust angle. It also supports wheelbase, wheel span, axle deviation, wheel offset, diagonal, center offset, and other measurements. | ✓ |
| Intelligent self-adaptive tracking system | Automatically tracks the target and adaptively adjusts the beam height according to the height of the target. | ✓ |
| Database | Supports positioning data for more than 50,000 global vehicle models and supports a user-defined database. | ✓ |
| Test report | Supports measurement report saving and printing. | ✓ |
| Compatible with multiple platforms | Suitable for four-post lifts, large scissor lifts, small scissor lifts, two-post lifts, and workshop trenches. | ✓ |
| Multi-station sharing | The complete machine is movable, making it convenient for sharing across multiple service stations. | ✓ |
| Dual-screen display | Supports dual-screen display at the same time. An optional secondary screen is required. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Toe-in | ±20° | Wheel Base | 1940–4600 mm |
| Camber | ±10° | Wheel Track | 1290–1900 mm |
| Caster | ±20° | Wheel Diameter (4-point wheel hub clamp) | 275–640 mm |
| SAI | ±20° | Maximum steering angle | ±35° |
