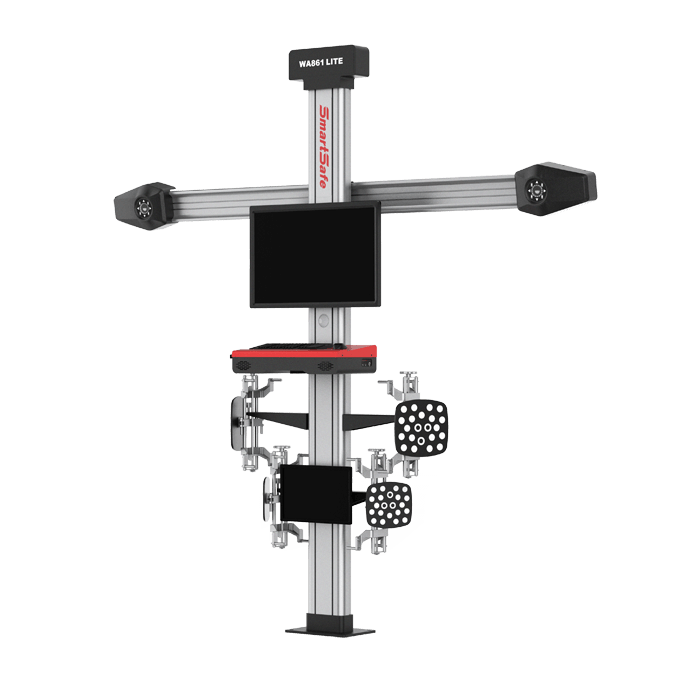

WA861 LITE 3D Wheel Aligner (Original Model: X-861 L)

Smart Equipment WA861 LITE uses 3D imaging principle to collect ultra-high-speed and high-precision tire data of vehicles. The four wheel alignment angles mainly include: camber, toe-in, caster and steering axle inclination. It is a classic stationary 3D wheel aligner, ideal for professional repair shops and tire service centers!
Contact Now WA861 LITE 3D Wheel Aligner
Features

Engineered for Excellence

50,000+ Vehicle Database

Access an extensive database of 50,000+ global vehicle models with free lifetime software updates for accurate and up-to-date alignment coverage.

10–15 cm Rolling Compensation

Supports 10–15 cm rolling compensation, reducing setup time while improving measurement speed and workshop efficiency.

Adjustable Beam Height

The beam height can be manually adjusted to suit different workshop environments and lift configurations, with no recalibration required after adjustment.

Classic Stationary Design

The robust stationary design delivers reliable performance, long-term durability, and a cost-effective solution for professional automotive workshops.

Function

What Can Be Solved in Your Shop

WA861 LITE Stationary 3D four-wheel aligner, with wheel alignment data and adjustment methods of more than 20,000 kinds of cars in the world, users can also expand and supplement new car data by themselves.
Contact Now WA861 LITE 3D Wheel Aligner
Functions Description ✓
Four-wheel alignment measurement Supports standard measurement and quick measurement, and can measure key parameters such as toe-in, camber, caster angle, kingpin inclination, and thrust angle. It also supports wheelbase, wheel span, axle deviation, wheel offset, diagonal, center offset, and other additional measurements. ✓
Database Supports positioning data for more than 50,000 global vehicle models and supports a user-defined database. ✓
Test report Supports measurement report saving and printing. ✓
Compatible with multiple platforms Suitable for four-post lifts, large scissor lifts, and workshop trenches. ✓
Dual-screen display Supports simultaneous dual-screen display. An optional secondary screen is required. ✓
Contact

Let's Build Your Workshop Together

Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.

Facebook-f Icon-whatsapp-1 Youtube Instagram
  • 18 Abpara LCCI near EME DHA Canal Road Lahore

Products Parameters

Parameters
Display Accuracy 1′ / 0.01° / 0.1mm Kingpin Inclination ±6′
Toe ±2′ Trust Angle ±2′
Camber ±2′ Wheel Track ±2mm
Caster ±4′ Wheel Base ±2mm
Maintenance tips

Make Your Products Last Longer

  • Do not place the computer host and/or monitor in a place with a radioactive source and heat source, or in other environments where it is exposed to direct sunlight, heat, cold and humidity.
  • Do not insert anything into the host and monitor through the gap.
  • Do not move or violently shake the computer while it is working.
  • Avoid frequent boot.
  • Do not modify the BIOS settings.
  • Do not delete the files you do not understand on the hard disk, to prevent the computer from abnormal operation or breakdown.
  • The host computer is dedicated to the 3D wheel aligner. Do not use extraneous software on this equipment, to avoid virus infection. The warranty expires automatically for any system problem due to virus infection.

Document

Smart Equipment WA861 LITE 3D Wheel Aligner Product Catalog
