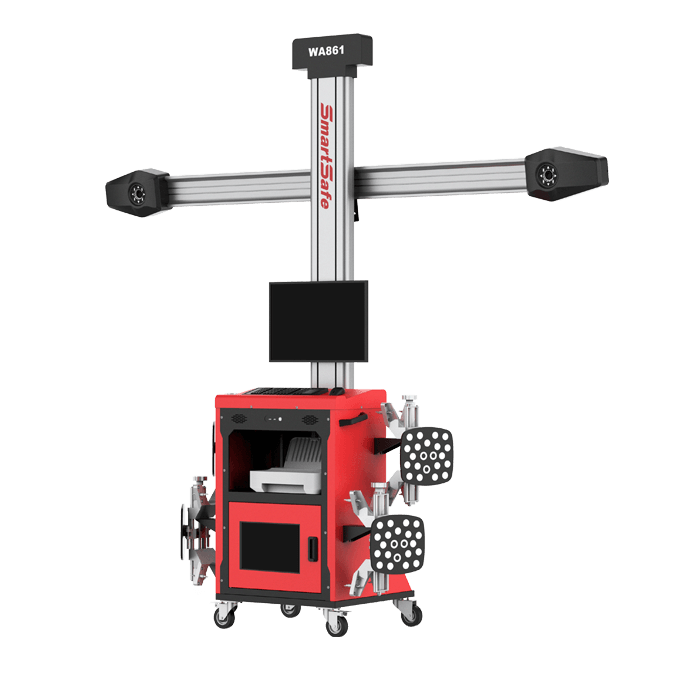

Smart Equipment WA861 Wheel Aligner is a professional mobile alignment machine. Based on 3D imaging technology, the new version of WA861 will enable you to do alignment work using less room and with higher efficiency correctly. Mobile design enables you to move the whole equipment to save space.

Engineered for Excellence

50,000+ Global Vehicle Database

Access a comprehensive database of over 50,000 global vehicle models with free lifetime software updates, ensuring accurate alignment for the latest vehicles.

10–15 cm Rolling Compensation

Supports 10–15 cm rolling compensation, reducing setup time and improving measurement efficiency for faster alignment operations.

Adjustable Beam Height

The beam height can be manually adjusted to accommodate different workshop environments and lift configurations, with no recalibration required after adjustment.

Multi-Station Sharing

The fully movable system can be shared between multiple service bays, maximizing workshop space utilization and improving operational efficiency.

What Can Be Solved in Your Shop

The WA861 Portable Alignment Tool is easy to operate and allows for freedom of movement around the workshop. Equipped with this tool, it can improve work efficiency and generate work profit for you.

Contact Now WA861 3D Wheel Aligner

Functions	Description
Four-wheel alignment measurement	It supports standard measurement and quick measurement and can measure key parameters such as toe, camber, caster, kingpin inclination, and thrust angle. Supports additional measurements such as wheelbase, wheel track, axle offset, wheel offset, diagonal, center offset, etc.
Database	Supports positioning data of 50,000+ global vehicle models and supports a user-defined database.
Test report	Supports measurement report saving and printing.
Compatible with multiple platforms	Suitable for four-post lifts, large scissor lifts, and workshop trenches.
Multi-station sharing	The complete machine is movable, making it convenient for sharing across multiple service stations.
Dual-screen display	Supports dual-screen display at the same time. An optional secondary screen is required.

Let's Build Your Workshop Together

Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.

Products Parameters

Parameters
Display Accuracy	1′ / 0.01° / 0.1mm	Kingpin Inclination	±6′
Toe	±2′	Trust Angle	±2′
Camber	±2′	Wheel Track	±2mm
Caster	±4′	Wheel Base	±2mm

Make Your Products Last Longer

Do not place the computer host and/or monitor in a place with a radioactive source and heat source, or in other environments where it is exposed to direct sunlight, heat, cold and humidity.
Do not insert anything into the host and monitor through the gap.
Do not move or violently shake the computer while it is working.
Avoid frequent boot.
Do not modify the BIOS settings.
Do not delete the files you do not understand on the hard disk, to prevent the computer from abnormal operation or breakdown.
The host computer is dedicated to the 3D wheel aligner. Do not use extraneous software on this equipment, to avoid virus infection. The warranty expires automatically for any system problem due to virus infection.

Document

Smart Equipment WA861 3D Wheel Aligner Product Catalog

Download

WA861 3D Wheel Aligner (Original Model: X-861 M)
