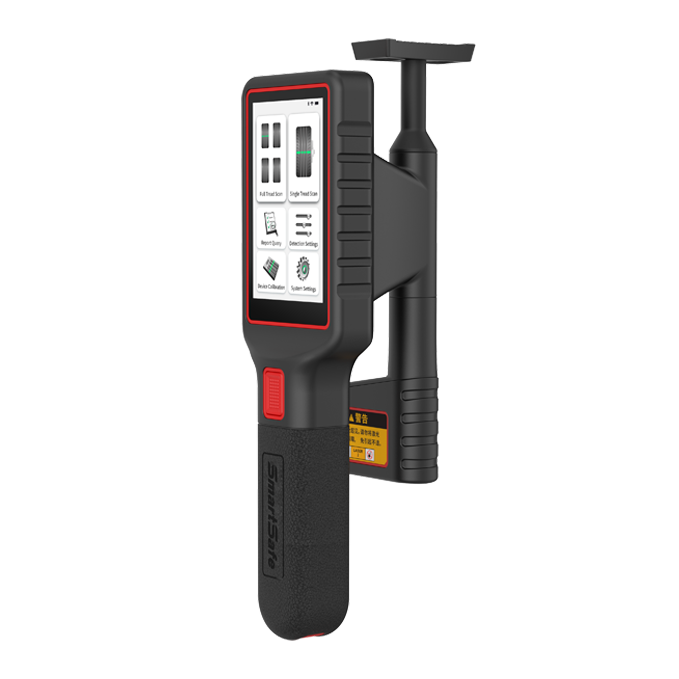

The innovative structural design allows accurate measurements regardless of chassis height, making the system easy to operate and suitable for a wide range of vehicle types.
Scan the entire tire tread in a single pass to measure groove count and tread depth accurately, generating a comprehensive inspection report.
Measure the depth of individual grooves or specific tread sections with precision and generate detailed reports for targeted tire inspections.
Provides 0.1 mm measurement accuracy with real-time data display, ensuring reliable and consistent tire wear analysis.
Automatically generate professional tire inspection reports with maintenance recommendations. Reports can be easily shared through a QR code after connecting to Wi-Fi.
Features a 180 mm laser measurement width, supporting a broader range of tire sizes and specifications while improving inspection efficiency.
| Functions | Description | ✓ |
|---|---|---|
| Tire tread depth measurement | Supports one-time measurement of the entire tread surface for a single tire and also supports single-groove detection, allowing precise measurement of the depth of individual grooves or small tire treads. | ✓ |
| Test report | Quickly generates a tire tread inspection report displaying tread depth data, wear analysis, estimated braking distance, maintenance recommendations, and more. After connecting to Wi-Fi, reports can be shared instantly via QR code. | ✓ |
| Detection parameter setting | Supports configuration of the number of tires (up to 8), tread depth standards, and measurement units. | ✓ |
| Equipment calibration | Works with a calibration block, allowing users to calibrate the measurement accuracy of the device whenever required. | ✓ |
| Compatible with Smart Equipment connection terminals | Compatible with ST13, P13, P03, and other connection terminals for synchronized display and storage of measurement results. | ✓ |
| System settings | Supports Wi-Fi connectivity, language switching, screen brightness adjustment, automatic sleep mode, software updates, and other system functions. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| CPU | RK3326 | Measurement Accuracy | 0.1 mm |
| Memory | 2 GB | Maximum Measured Width | 180 mm |
| Storage | 32 GB | Communication Mode | Wi-Fi (2.4 GHz / 5 GHz Dual-Band), Bluetooth |
| Screen | 3.97-inch LCD Touch Screen, 480 × 800 Resolution | Charging Input | DC 5V / 2A |
| Measuring Camera | 2 MP | Operating Temperature | 0°C ~ 45°C |
| Battery | 5000 mAh / 3.7 V | Storage Temperature | -20°C ~ 60°C |
| Photography Camera | 8 MP | ||
