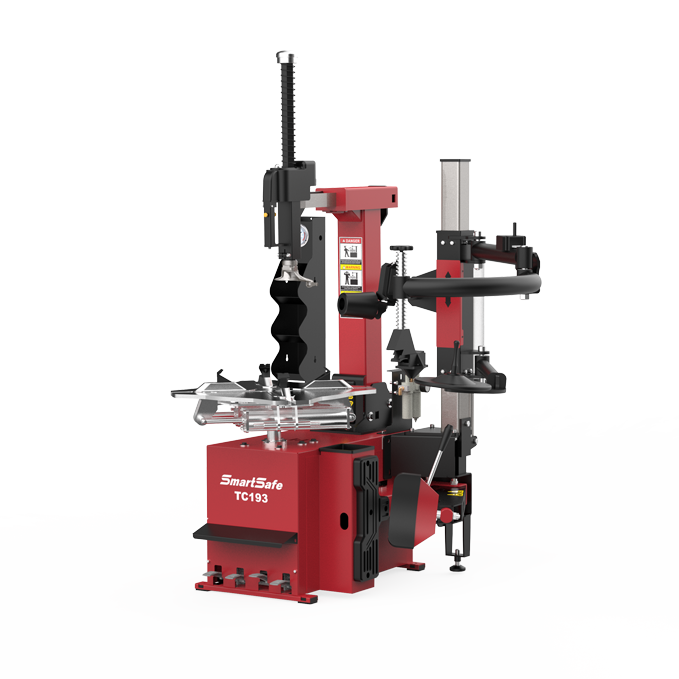

Features a reinforced mechanical arm with wear-resistant sliding blocks and precision-ground square tubing, ensuring smooth movement, reliable operation, and long-term durability.
All auxiliary arm joints use precision bearings to provide stable, low-friction movement without sticking or operational delay.
Built with a thick working plate, precision-cast steel jaws, a protective turntable cover, and a high-quality aluminum cylinder for secure and dependable wheel clamping.
The all-aluminum pneumatic cylinder reduces vibration and friction, improving operating stability while extending the cylinder’s service life.
Features an explosion-proof oil mist lubricator with strong pressure resistance, helping maintain safe and reliable pneumatic operation.
Supports an optional automatic mounting-head flip function for faster, more convenient tire installation and removal.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Rim Diameter Range |
Outer Clamping: 10"–22" Inner Clamping: 12"–24" |
Power Supply | 110V / 220V / 380V |
| Maximum Tire Width | 13" (330 mm) | Motor Power | 0.75 / 1.1 kW |
| Maximum Tire Diameter | 39" (1000 mm) | Net / Gross Weight | 300 kg / 346 kg |
| Working Air Pressure | 8–10 bar | Package Dimensions | 1070 × 980 × 1200 mm |
| Operating Speed | 7 rpm | Container Loading Quantity | 20GP: 15 pcs | 40HQ: 48 pcs |
| Bead Breaker Force | 2500 kgf | ||
