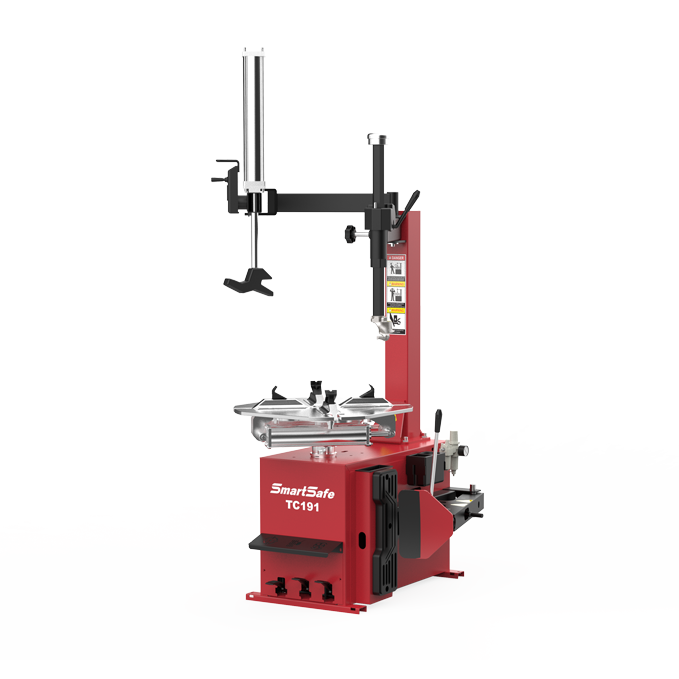

Equipped with a high-strength white steel tire mounting head, providing excellent durability, wear resistance, and reliable performance for daily workshop use.
Features a thick working table, precision-cast steel jaws, protective jaw covers, and a high-quality all-aluminum cylinder to ensure secure wheel clamping while protecting alloy rims.
All pneumatic hose connectors are manufactured from copper, offering improved sealing, corrosion resistance, and long service life.
The metal hexagonal compression cover features a robust construction with an attractive design, delivering excellent durability and reduced maintenance requirements.
Includes a heavy-duty bead breaker with a reinforced shovel arm, universal large shovel, protective cover, and anti-slip rubber pad for efficient and safe tire removal.
Equipped with an integrated tire pressure regulator, allowing convenient control of air pressure during tire inflation and servicing.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Rim Diameter Range |
Outer Clamping: 10"–20" Inner Clamping: 12"–22" |
Power Supply | 110V / 220V / 380V |
| Maximum Tire Width | 13" (330 mm) | Motor Power | 0.75 / 1.1 kW |
| Maximum Tire Diameter | 39" (1000 mm) | Net / Gross Weight | 164 kg / 184 kg |
| Working Air Pressure | 8–10 bar | Package Dimensions | 985 × 770 × 885 mm |
| Operating Speed | 7 rpm | Container Loading Quantity | 20GP: 36 pcs | 40HQ: 108 pcs |
| Bead Breaker Force | 2500 kgf | ||
