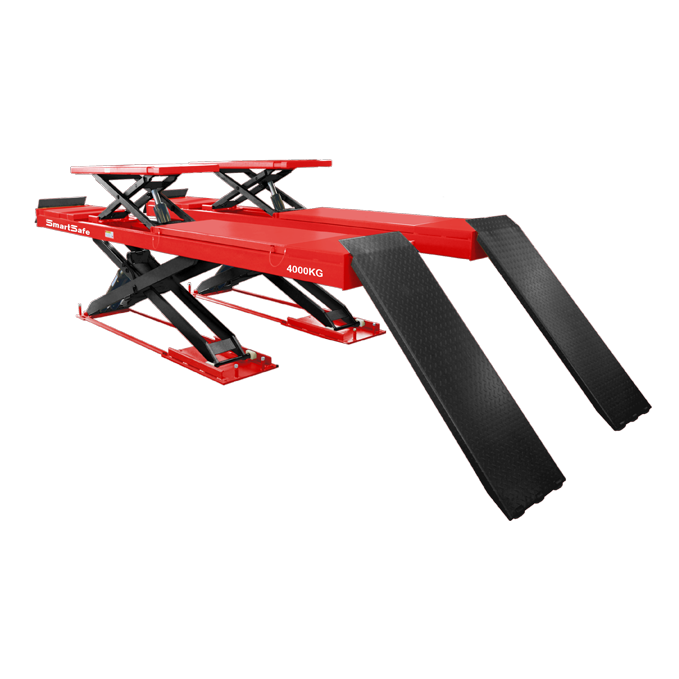

Features a low-profile double-layer platform with a thickness of only 190 mm, making it suitable for vehicles with limited ground clearance.
Uses dual hydraulic systems with hydraulic locks and triple mechanical safety devices. The locks automatically release during lowering for safer and smoother operation.
The platform bridge is formed from a single steel plate using precision bending and welding, providing improved strength, accuracy, and structural stability.
Hydraulic cylinder components are processed using high-speed CNC equipment with rolled and mirror-finished cylinder barrels for smooth movement, accurate alignment, and long service life.
The X-frame is laser-cut from high-strength alloy steel, delivering excellent load-bearing strength, corrosion resistance, and resistance to deformation.
Shot blasting and high-temperature powder coating provide strong protection against corrosion, wear, and harsh workshop conditions.
All pivot points use wear-resistant bearings and polymer sliding components to reduce friction and support smooth, reliable lifting.
Equipped with an independent control cabinet and a 24V safety control circuit for convenient operation and improved electrical safety.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | 220V / 380V | Sub-Lift Platform Length | 1540–1750 mm |
| Main Lift Capacity | 4000 kg | Sub-Lift Platform Width | 600 mm |
| Sub-Lift Capacity | 4000 kg | Net Weight | 2290 kg |
| Initial Height | 220 mm | Motor Power | 3 kW |
| Main Lift Height | 1630 mm | Drive System | Electro-Hydraulic |
| Sub-Lift Height | 460 mm | Hydraulic Oil | 16 L 46# Anti-Wear Hydraulic Oil (User Supplied) |
| Main Platform Length | 4520 mm | Air Pressure | 6–8 bar |
| Main Platform Width | 655 mm | Operating Temperature | 5–40°C |
