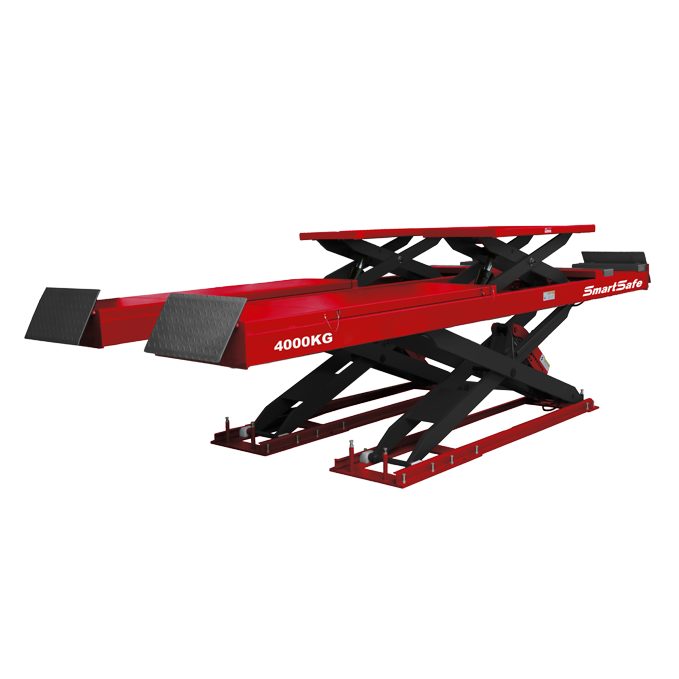

LTLT840 is an Big Scissor Lift. The significantly thickened bridge plate ensures the accuracy of the four-wheel alignment cart. The high-precision insurance ensures the stability of the wheel alignment data. The X-support frame is made of solid steel and its anti-rust performance is greatly improved compared to the traditional square tube-type X-support frame. It has excellent performance and high durability.

Engineered for Excellence

Dual Safety Hydraulic System

Features hydraulic synchronization with a hydraulic safety lock and dual mechanical safety devices that automatically release during lowering for secure, smooth operation.

Precision CNC Hydraulic Cylinders

Hydraulic cylinder components are processed using high-speed CNC machining with rolled and mirror-finished barrels, ensuring excellent alignment, smooth lifting, and long service life.

Explosion-Proof Hydraulic Protection

Equipped with imported seals, premium ball valves, and hydraulic explosion-proof safety devices for reliable pressure control and enhanced workshop safety.

Independent 24V Control System

Includes an independent control cabinet with a 24V low-voltage safety circuit for convenient operation and improved electrical protection.

Heavy-Duty X-Frame Construction

The X-frame is laser-cut from high-strength alloy steel, providing excellent load-bearing strength, corrosion resistance, and resistance to deformation.

Durable Surface Finish

Shot blasting and high-temperature powder coating protect the lift against corrosion, wear, and demanding workshop conditions.

Retractable Secondary Lift

Features a retractable secondary lifting platform for easier wheel-free servicing, inspection, and underbody maintenance.

Wear-Resistant Moving Components

All pivot points use durable bearings and polymer wear-resistant sliders to reduce friction and maintain smooth operation.

Space-Saving Hidden Scissor Design

The recessed scissor structure occupies minimal workshop space while providing a clean, unobstructed service area.

Let's Build Your Workshop Together

Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.

Products Parameters

Parameters
Power Supply	220V / 380V	Sub-Lift Platform Length	1480–1680 mm
Main Lift Capacity	4000 kg	Sub-Lift Platform Width	570 mm
Sub-Lift Capacity	4000 kg	Net Weight	1847 kg
Initial Height	330 mm	Motor Power	3 kW
Main Lift Height	1850 mm	Drive System	Electro-Hydraulic
Sub-Lift Height	480 mm	Hydraulic Oil	16 L 46# Anti-Wear Hydraulic Oil (User Supplied)
Main Platform Length	4500 mm	Air Pressure	6–8 bar
Main Platform Width	625 mm	Operating Temperature	5–40°C

Make Your Products Last Longer

Overloading work is prohibited. When the lifting sound is abnormal or cannot be started, it should stop working, find out the reason, and eliminate the fault before continuing to use it.
Regularly add grease to the parts that need to be greased.
