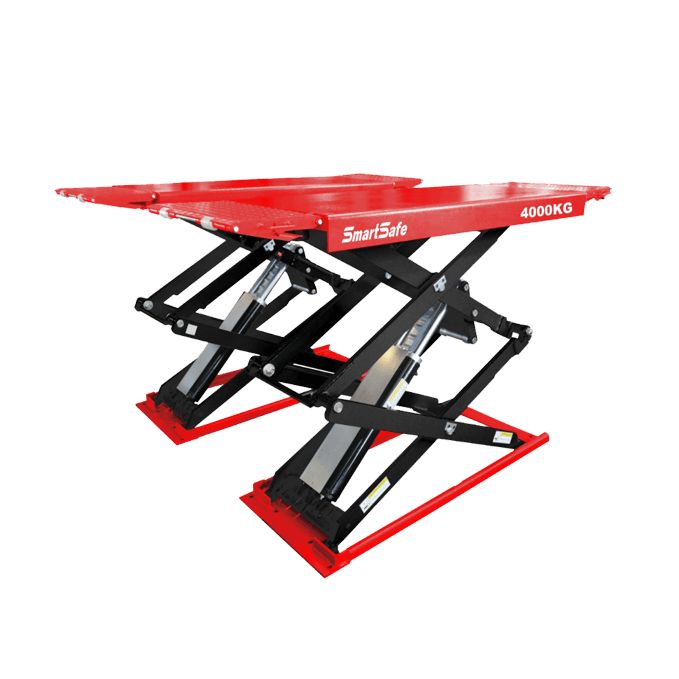

Features an ultra-slim 110 mm profile, making it ideal for low-clearance vehicles while minimizing installation requirements.
Utilizes a dual hydraulic synchronization system with hydraulic locking and triple mechanical safety locks. The safety locks automatically release during lowering for secure and reliable operation.
Equipped with a 24V low-voltage control circuit, improving operator safety while ensuring stable and dependable lift operation.
Hydraulic cylinders are manufactured using high-speed CNC machining with mirror-finished cylinder barrels, providing excellent concentricity, smooth lifting performance, and long service life.
The X-frame is laser-cut from premium steel using CNC equipment, delivering exceptional dimensional accuracy, high structural strength, corrosion resistance, and long-term durability.
Features extendable approach bridges that accommodate longer-wheelbase vehicles, increasing compatibility with a wider range of passenger vehicles.
Finished with shot blasting and high-temperature powder coating to provide superior corrosion resistance, wear resistance, and long-lasting durability.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Rated Lifting Capacity | 4000 kg | Motor Power | 2.2 kW |
| Initial Height | 110 mm | Power Supply | 220V / 380V |
| Maximum Lifting Height | 1830 mm | Drive System | Electro-Hydraulic |
| Platform Length | 1530–2140 mm | Hydraulic Oil | 46# Anti-Wear Hydraulic Oil, 16 L |
| Platform Width | 665 mm | Air Pressure | 6–8 bar |
| Net Weight | 986 kg | Operating Temperature | 5–40°C |
