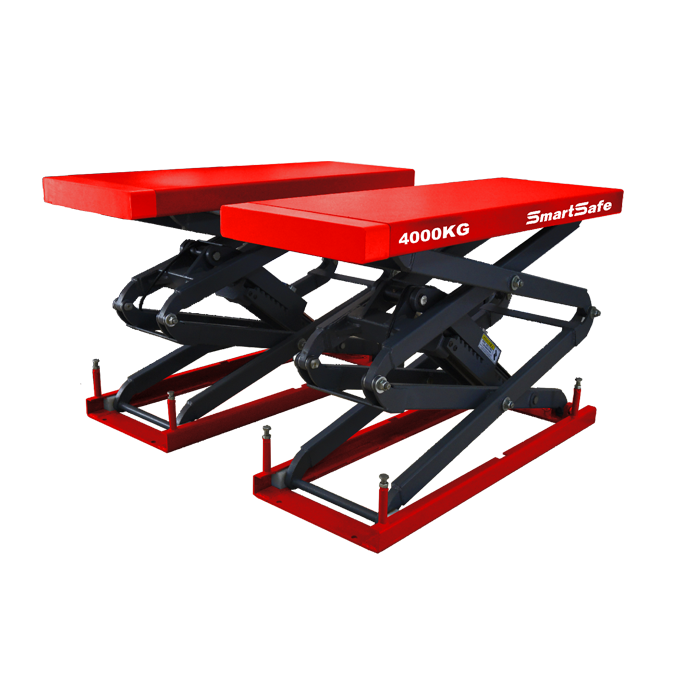

Features hydraulic synchronization with a hydraulic safety lock and dual mechanical safety locking system that automatically releases during lowering for secure and reliable operation.
Equipped with a 24V low-voltage control system, providing enhanced operator safety and stable lift operation.
Hydraulic cylinders are manufactured using high-speed CNC machining with mirror-finished cylinder barrels, ensuring excellent concentricity, smooth lifting performance, and extended service life.
The extendable lifting platforms accommodate vehicles with different wheelbases, providing greater flexibility for passenger cars and SUVs.
The lift is finished with shot blasting and high-temperature powder coating, offering outstanding corrosion resistance, wear resistance, and long-lasting durability.
All pivot points are equipped with high-quality wear-resistant bearings to reduce friction, improve lifting smoothness, and minimize maintenance requirements.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Rated Lifting Capacity | 4000 kg | Motor Power | 2.2 kW |
| Initial Height | 330 mm | Power Supply | 220V / 380V |
| Maximum Lifting Height | 1999 mm | Drive System | Electro-Hydraulic |
| Platform Length | 1560–1760 mm | Hydraulic Oil | 46# Anti-Wear Hydraulic Oil, 16 L |
| Platform Width | 565 mm | Air Pressure | 6–8 bar |
| Net Weight | 761 kg | Operating Temperature | 5–40°C |
