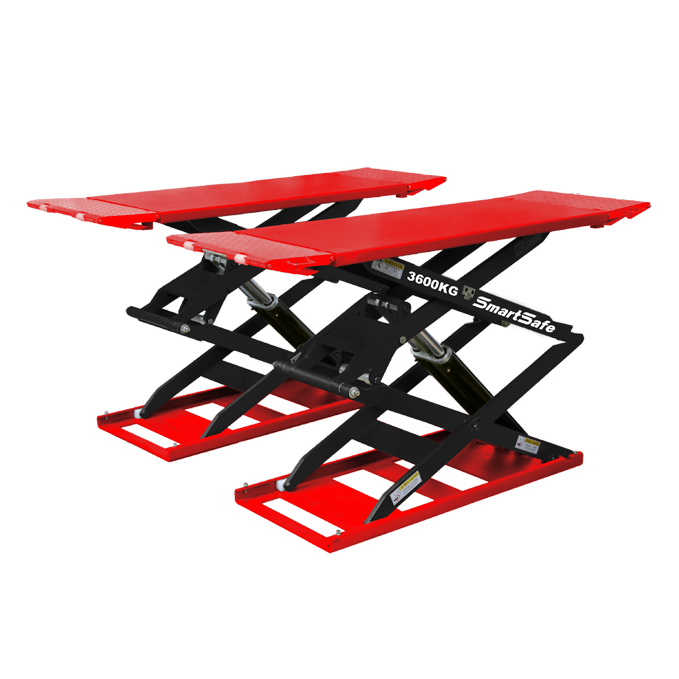

Features an ultra-slim design with an overall thickness of only 110 mm, making it ideal for low-clearance vehicles and workshops without recessed installation.
Equipped with a dual hydraulic synchronization system, hydraulic safety lock, and triple mechanical safety locking mechanism with automatic unlocking during lowering.
Operates on a low-voltage 24V control system, improving electrical safety and ensuring reliable day-to-day operation.
Hydraulic cylinders are manufactured using high-speed CNC machining with precision-honed and mirror-finished barrels, providing smooth lifting performance and extended service life.
The X-frame is laser-cut from high-strength steel using CNC equipment, delivering outstanding structural strength, corrosion resistance, and long-term durability.
Includes extendable approach bridges that accommodate longer-wheelbase vehicles, expanding compatibility across a wider range of passenger vehicles.
Finished with shot blasting and high-temperature powder coating to provide excellent corrosion resistance, wear resistance, and long-lasting appearance.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Rated Lifting Capacity | 3600 kg | Motor Power | 2.2 kW |
| Initial Height | 110 mm | Power Supply | 220V / 380V |
| Maximum Lifting Height | 1880 mm | Drive System | Electro-Hydraulic |
| Platform Length | 1480–2090 mm | Hydraulic Oil | 46# Anti-Wear Hydraulic Oil, 16 L |
| Platform Width | 630 mm | Air Pressure | 6–8 bar |
| Net Weight | 792 kg | Operating Temperature | 5–40°C |
