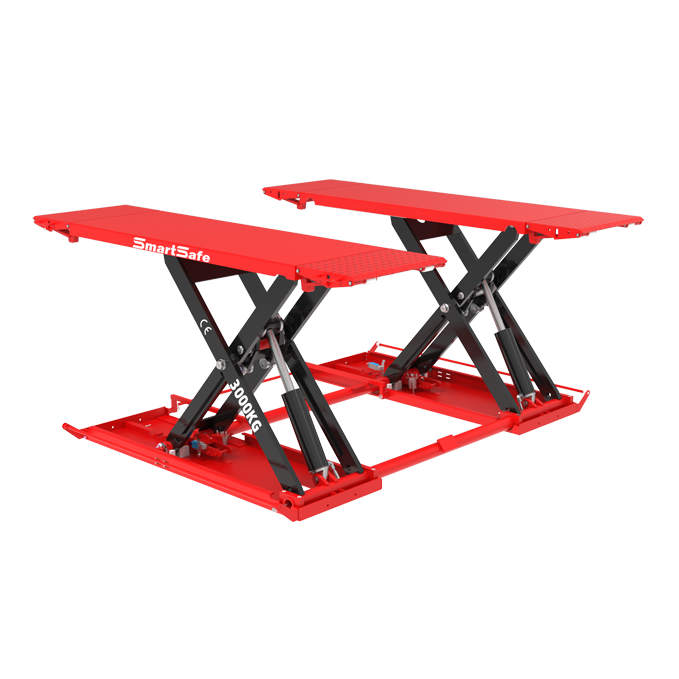

Features a lightweight, space-saving structure that requires no permanent floor installation, making it easy to move and use in different workshop areas.
The low-profile scissor design fits easily into narrow or limited working spaces, making it ideal for compact service bays and mobile workshop applications.
The mechanical locking system engages automatically while lifting and releases through pneumatic control during lowering for safer, more reliable operation.
Equipped with an integrated control system and operating panel for accurate lifting, smooth height adjustment, and convenient day-to-day use.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | 220V / 380V | Container Loading Quantity | 20GP: 24 pcs | 40HQ: 48 pcs |
| Rated Lifting Capacity | 3000 kg | Motor Power | 2.2 kW |
| Initial Height | 102 mm | Drive System | Electro-Hydraulic |
| Maximum Lifting Height | 1000 mm | Hydraulic Oil | 46# Anti-Wear Hydraulic Oil, 6 L |
| Platform Length | 1420–2015 mm | Air Pressure | 6–8 bar |
| Platform Width | 520 mm | Operating Temperature | 5–40°C |
| Net Weight | 600 kg | ||
