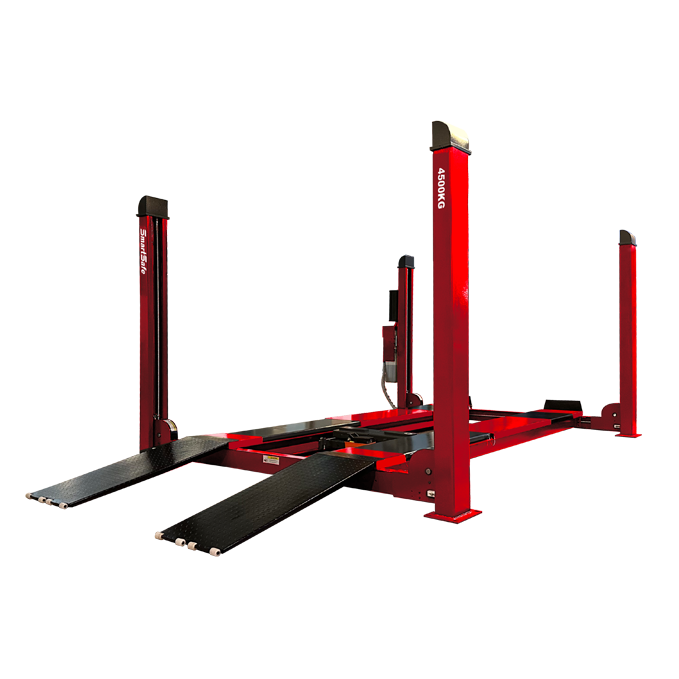

Hydraulic cylinder components are manufactured using high-speed CNC machining with rolled and mirror-finished cylinder barrels, ensuring excellent alignment, smooth operation, and long service life.
Features an electro-hydraulic lifting system with synchronized wire rope transmission and an enlarged hydraulic cylinder for smooth, stable lifting and lowering.
Shot-blasted steel construction with high-temperature powder coating provides outstanding resistance to corrosion, wear, and demanding workshop environments.
Four-sided wire rope balancing ensures stable platform movement and makes the lift ideal for wheel alignment and precision vehicle servicing.
Equipped with a fully automatic pneumatic unlocking system with safety detection, allowing convenient operation while maintaining reliable mechanical protection.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | 220V / 380V | Runway Inner Distance | 910–1010 mm |
| Main Lift Capacity | 4500 kg | Net Weight | 1358 kg |
| Jacking Beam Capacity | 2000 kg | Motor Power | 2.2 kW |
| Initial Height | 210 mm | Drive System | Electro-Hydraulic |
| Main Lift Height | 1700 mm | Hydraulic Oil | 10 L 46# Anti-Wear Hydraulic Oil (User Supplied) |
| Jacking Beam Lift Height | 480 mm | Air Pressure | 6–8 bar |
| Platform Length | 4780 mm | Operating Temperature | 5–40°C |
| Distance Between Columns | 3000 mm | ||
