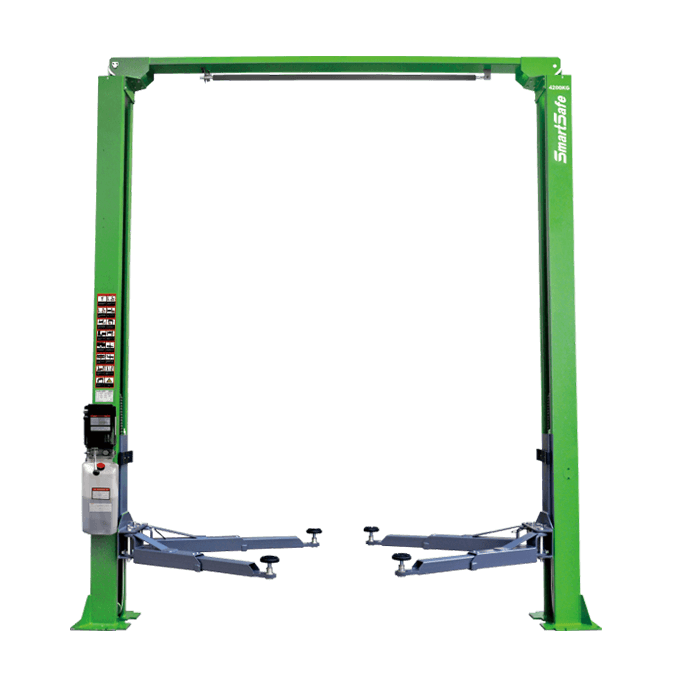

Supports vehicles up to 4.0 tons, making it ideal for routine maintenance of passenger cars, SUVs, and light commercial vehicles.
Features adjustable lifting arms with a minimum pad height of 100 mm, making it suitable for low-clearance, sports, and standard passenger vehicles.
Complies with 120% dynamic load and 150% static load testing requirements, meeting CE safety standards for dependable workshop operation.
The 2780 mm column spacing accommodates a wide range of vehicles, including large SUVs and commercial vans.
Equipped with full-range mechanical safety locks, an explosion-proof hydraulic flow control valve, and overload protection for secure lifting and lowering.
All moving components use self-lubricating, oil-free bearings, ensuring smooth operation, reduced maintenance, and extended service life.
Laser-cut components and automated robotic welding deliver exceptional structural strength, dimensional accuracy, and long-lasting durability.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | 220V / 380V | Lifting Time | ≤ 45 s |
| Maximum Lifting Capacity | 4.0T | Drive System | Hydraulic Drive |
| Maximum Lifting Height | 1930 mm | Motor Power | 2.2 kW |
| Minimum Lifting Height | 100 mm | Hydraulic Oil | 8 L Wear-Resistant Hydraulic Oil (User Supplied) |
| Overall Height | 3740 mm | Hydraulic Pump Flow | 2.7 ml/r |
| Distance Between Columns | 2780 mm | Operating Environment | Temperature: 5–40°C | Humidity: 30%–95% |
