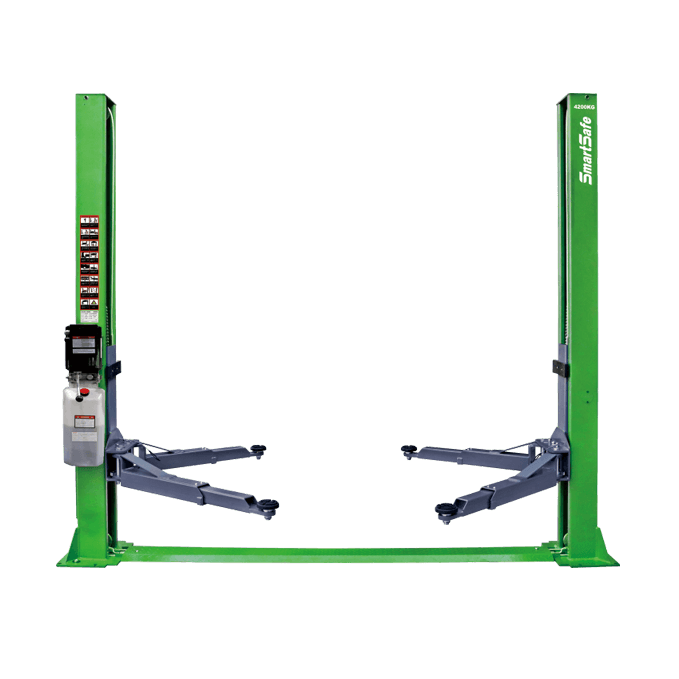

Supports vehicles weighing up to 4.0 tons, making it suitable for common passenger cars, SUVs, and light commercial vehicle maintenance.
Features adjustable lifting arms with a minimum pad height of 100 mm, allowing safe lifting of low-clearance and sports vehicles.
Tested at 120% dynamic load and 150% static load, meeting CE safety requirements for reliable workshop operation.
Uses a preset hydraulic pressure system with built-in overload protection to help prevent unsafe lifting conditions.
Provides a 2780 mm column width, offering enough clearance for wide vehicles, including SUVs and commercial vans.
Equipped with mechanical safety locks throughout the lifting range for secure positioning and controlled operation.
Includes protective column covers, rubber door pads, foot guards, and explosion-proof flow-control valves to help protect technicians and vehicles.
All moving points use self-lubricating, oil-free bearings for smooth operation, reduced maintenance, and long-term durability.
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | 220V / 380V | Lifting Time | ≤ 50 s |
| Maximum Lifting Capacity | 4.0T | Drive System | Hydraulic Drive |
| Maximum Lifting Height | 1930 mm | Motor Power | 2.2 kW |
| Minimum Lifting Height | 100 mm | Hydraulic Oil | 8 L Wear-Resistant Hydraulic Oil (User Supplied) |
| Overall Height | 2824 mm | Hydraulic Pump Flow | 2.7 ml/r |
| Distance Between Columns | 2780 mm | Operating Environment | Temperature: 5–40°C | Humidity: 30%–95% |
