A professional electrical vehicle battery pack disassembly and assemblymachine, and can quickly and safely complete the battery pack disassemblyand assembly from the bottom of the vehicle, and move and repairpositions. Equipped with heavy 360universal mobile casters to move orlock in place, and equipped with pressure insulation protective pads toprotect the safety of maintenance personnel.

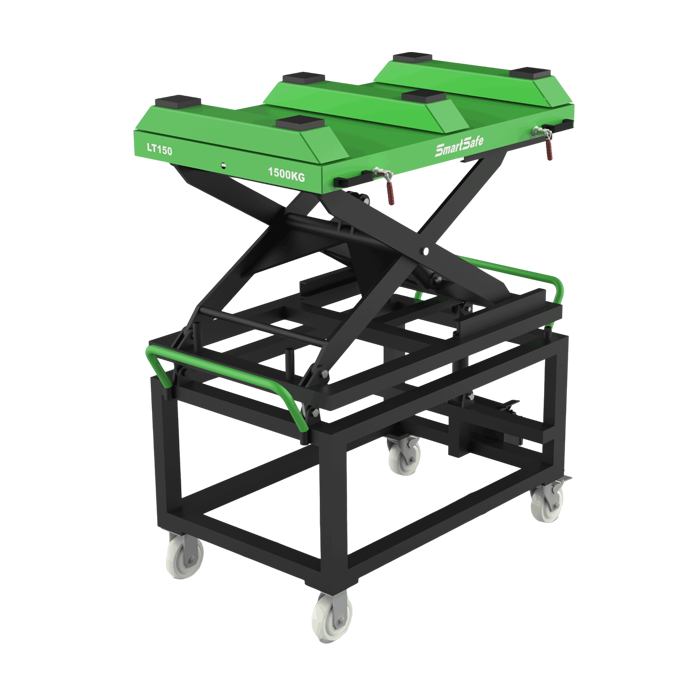

Contact Now LT150 EV Battery Lift (Pneumatic Version)

Engineered for Excellence

Heavy-Duty 1.5-Ton Lifting Capacity

Rated to lift up to 1.5 tons, making it suitable for the removal and installation of most electric vehicle battery packs.

Precision Engineered Construction

Manufactured using laser-cut steel components and robotic welding technology to ensure outstanding structural strength, precision, and long-term durability.

Pneumatic Hydraulic Lifting System

Powered by a pneumatic pump with a hydraulic cylinder and balancing support bars, delivering smooth, stable, and controlled lifting and lowering operations.

360° Heavy-Duty Swivel Casters

Equipped with industrial-grade 360° swivel casters for effortless movement, positioning, and maneuverability around the workshop.

Electrically Insulated Platform

The lifting platform features rubber insulation pads to help protect technicians from accidental electrical contact while servicing high-voltage EV battery packs.

What Can Be Solved in Your Shop

Contact Now LT150 EV Battery Lift (Pneumatic Version)

Let's Build Your Workshop Together

Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.

Products Parameters

Parameters
Rated Lifting Capacity	1.5T	Platform Length	1260 mm
Minimum Height	1100 mm	Tilt Angle	25°
Maximum Height	1850 mm	Ascending Time	18 s
Dimensions	1500 × 800 × 1100 mm	Descending Time	11 s (Adjustable Lowering Speed)

Make Your Products Last Longer

Lower the lift to the bottom height and push it under the car that has been raised to the working height.
Align it with the load-bearing part of the car battery for stability.
Press the up button, the pump station rotates, the upper oil cylinder moves, the scissor arm rises by itself, and the side slide panel rises to the working position. Pay attention to whether the supporting part of the car battery is reliable, and whether the car is in a horizontal state, and then continue to operate after confirming that it is correct.
The switching valve controls the lifting of the upper and lower oil cylinders; press the up button, the pump station rotates, the oil cylinder moves, and the scissor arm rises or tilts according to the body; press the down button, the body descends with the oil cylinder to the lowest height.
Overload work is prohibited. When the lifting sound is abnormal or cannot be started, it should stop working, find out the reason, and eliminate the fault before continuing to use it.
Regularly add grease to the parts that need to be greased.
The hydraulic oil should be replaced after three months of operation, and once a year thereafter.

LT150 EV battery lift（Pneumatic version)
