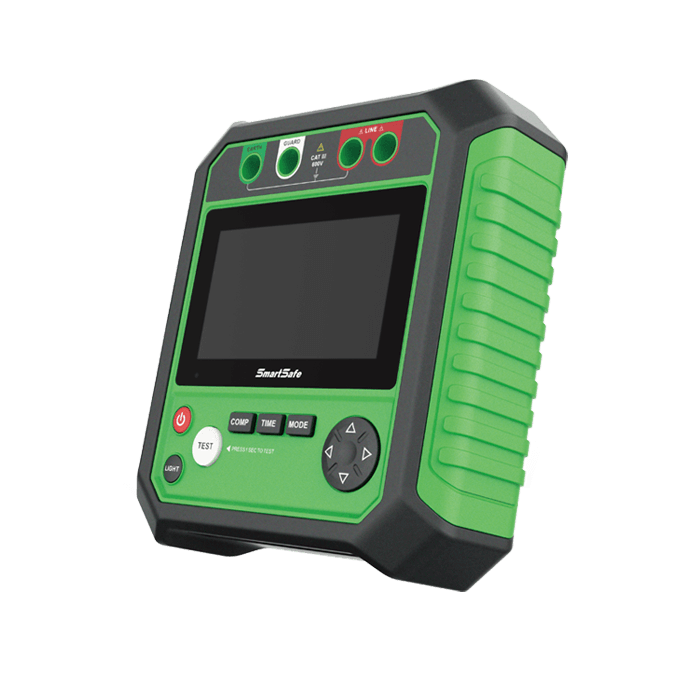

IRT01 insulation tester is equipped with powerful measurement and data processing software; thus, it can complete measurement of the insulation resistance, voltage, and other parameters. Its stable performance and easy operation are suitable for field measurement and maintenance users of power equipment and power supply lines.

Contact Now IRT01 Insulation Resistance Tester

Engineered for Excellence

Flexible Measurement Functions

Supports insulation resistance testing, AC/DC voltage measurement, comparison testing, continuous measurement, and timed measurement, providing versatile functionality for a wide range of electrical diagnostic tasks.

Ultra-Wide Resistance Range

Offers a broad insulation resistance measurement range from 10 MΩ to 1000 GΩ, with multiple output voltage options to suit different testing applications.

Intelligent Safety Alarm

Features an automatic warning system that alerts users when measured values exceed preset limits, helping protect both personnel and equipment during testing.

5-Inch Backlit LCD Display

Equipped with a large 5-inch LCD screen with backlight for clear, easy-to-read measurement results, even in low-light working environments.

Automatic Power-Off

Automatically powers off after 15 minutes of inactivity, reducing unnecessary battery consumption and extending operating time.

What Can Be Solved in Your Shop

IRT01 is an insulation resistance tester for electric vehicle insulation resistance measurement. It supports three modes of comparative measurement, continuous measurement and timed measurement, and can measure AC and DC voltage.

Contact Now IRT01 Insulation Resistance Tester

Functions	Description	✓
Insulation Resistance Test	Supports selectable output voltages of 500V, 1000V, 2500V, and 5000V. Includes comparison measurement, continuous measurement, and timed measurement modes for comprehensive insulation testing.	✓
Voltage Measurement	Supports both DC and AC voltage measurement for versatile electrical diagnostics.	✓
Additional Features	Includes an LCD backlight, automatic power-off after 15 minutes of inactivity, over-range alarm, and high-voltage warning indicator for safer operation.	✓

Let's Build Your Workshop Together

Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.

Products Parameters

Parameters
Output Voltage	500 V / 1000 V / 2500 V / 5000 V	DC Measurement	±30 V to ±600 V DC, Resolution: 1 V, Accuracy: ±2%
Insulation Resistance	500 V: 10 MΩ – 20 GΩ	AC Measurement	±30 V to ±600 V AC, Resolution: 1 V, Accuracy: ±2%
	1000 V: 10 MΩ – 40 GΩ	Display	5-inch LCD Display
	2500 V: 10 MΩ – 100 GΩ	Battery	3150 mAh / 11.4 V
	5000 V: 10 MΩ – 1000 GΩ	Operating Temperature	0°C ~ 50°C
Short-Circuit Current	< 3.0 mA	Dimensions	190 × 207 × 72 mm

Make Your Products Last Longer

Please use clean water-wet soft cloth or sponge (without clear water residue) to wipe the surface of the casing.
Do not immerse the tester in water to avoid damaging it.
When the tester is wet, please dry it before storage.
When it is necessary to calibrate or repair the tester, please submit the tester to professional maintenance personnel or designated maintenance department.

Document

Smart Equipment IRT01 Insulation Resistance Tester Product Catalog

Download

IRT01 Insulation Resistance Tester (Original Model: iSmartEV RT100)
