Supports both high-pressure and low-pressure airtightness testing, with a maximum detection pressure of 500 kPa for EV battery packs, liquid cooling systems, and sealed component testing.
Uses separate high-pressure and low-pressure outlets to reduce the risk of incorrect connections, pressure misuse, and accidental equipment damage.
Filters moisture and contaminants from compressed air to protect internal sensors, improve testing stability, and extend equipment service life.
Automatically completes pressurization, pressure stabilization, judgment, and exhaust operations through one standardized testing process.
Automatically saves historical test records for quality control, service documentation, and professional report generation.

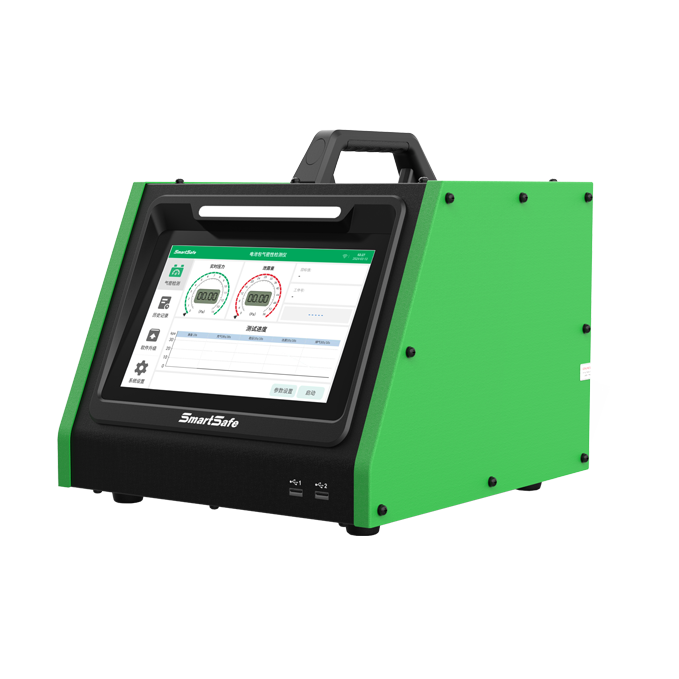

Features a large 10-inch touchscreen with an intuitive interface and clear data display for faster workshop operation.
| Functions | Description | ✓ |
|---|---|---|
| High & Low Pressure Compatibility | Supports high- and low-pressure airtightness testing with a maximum detection pressure of 500 kPa, ideal for EV battery packs and liquid cooling system testing. | ✓ |
| One-Button Automatic Testing | Automatically completes pressurization, pressure stabilization, leak evaluation, and exhaust operations for a faster and more intelligent testing process. | ✓ |
| Real-Time Process Visualization | Displays real-time pressure curves and testing progress, allowing technicians to monitor the entire airtightness testing process at a glance. | ✓ |
| Traceable Test Results | Automatically stores historical test records for quality control, service documentation, and professional report generation. | ✓ |
| Built-In Air Filtration | Removes moisture and contaminants from compressed air, protecting internal sensors while improving testing stability and equipment lifespan. | ✓ |
| OTA Remote Upgrades | Supports online firmware and detection algorithm updates to continuously improve system performance and user experience. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Input | AC 90–264V, 40–60Hz | Air Requirements | 0.1–1.0 MPa Dry Compressed Air |
| Test Pressure Range | 0–500 kPa | Air Inlet / Outlet Interface | 6 mm Air Hose |
| Sensor Resolution | 1 Pa | Operating Temperature | -5°C ~ 45°C |
| Test Accuracy | ±5 Pa | Operating Humidity | 5%–93% RH |
