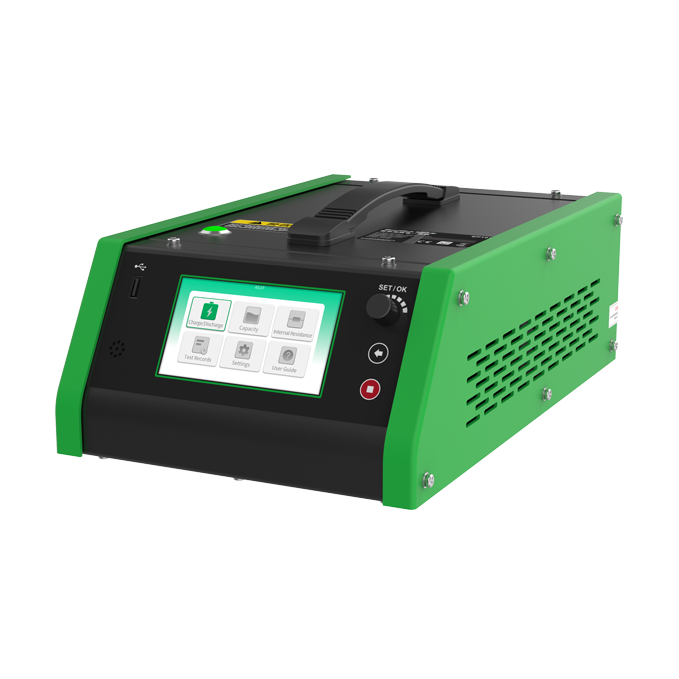

Compact and lightweight construction makes the EP101 ideal for on-site battery service, mobile repair applications, and desktop workstation testing.
Supports up to 50A constant-current charging and discharging, making it suitable for battery cell activation, capacity recovery, and performance restoration.
Combines charge/discharge testing, capacity analysis, and internal resistance measurement to provide a comprehensive evaluation of battery cell health and performance.
Features isolated voltage and current sampling channels for accurate, stable, and reliable measurement results throughout the testing process.
Integrates battery temperature monitoring and multiple built-in protection mechanisms to improve operational safety and protect both the equipment and battery cells during testing.
| Functions | Description | ✓ |
|---|---|---|
| Single-Cell Charge / Discharge Testing | Supports constant-current (CC) and constant-voltage (CV) charging and discharging with precise control of output current and voltage. | ✓ |
| Capacity Testing | Measures battery cell capacity through controlled charge and discharge cycles, enabling performance verification and service life evaluation. | ✓ |
| Internal Resistance Testing | Measures DC internal resistance of battery cells, allowing rapid assessment of cell degradation, consistency, and overall health. | ✓ |
| Multi-Battery Compatibility | Compatible with ternary lithium, lithium iron phosphate (LiFePO₄), lithium titanate (LTO), and lithium manganese oxide battery cells. | ✓ |
| Real-Time Monitoring & Data Logging | Displays voltage, current, capacity, internal resistance, and temperature in real time, with local data storage and USB export support. | ✓ |
| Multiple Safety Protections | Includes overvoltage, undervoltage, overcurrent, reverse polarity, disconnection, and overtemperature protection to ensure safe and reliable testing. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Input | AC 100–220V, 50/60 Hz | Storage & Data Export | Supports USB Drive Export |
| Voltage Range | 1V – 5V | Cooling Method | Forced Air Cooling |
| Current Range | 0.5A – 50A | Operating Temperature | -10°C ~ 60°C |
| Voltage Accuracy | ±0.2% FS + 5 mV (Max. Range: 5V, Resolution: 0.001V) | Storage Temperature | -20°C ~ 70°C |
| Current Accuracy | ±0.5% FS + 0.1A (Max. Range: 50A, Resolution: 0.1A) | Ambient Humidity | 10%–90% RH |
| Charge & Discharge Power | 250 W Max | Protection Level | IP21 |
| Display | 4.3-inch Color LCD Screen | Protection Functions | Battery overtemperature, system overtemperature, short-circuit, reverse polarity, disconnection, overcurrent, overvoltage, and undervoltage protection. |
| Input Method | Knob + Button | ||
