Delivers ±2mV voltage balancing accuracy, ensuring excellent voltage consistency between battery cells and improving overall battery pack performance.
Supports simultaneous balancing of up to 48 battery cells, making it ideal for large battery modules and high-capacity EV battery packs.
Displays real-time cell voltage curves and battery status, allowing technicians to monitor voltage fluctuations and balancing progress at a glance.
Supports mobile app pairing for real-time remote monitoring, enabling users to view operating status, battery data, and equalization progress from a smartphone.

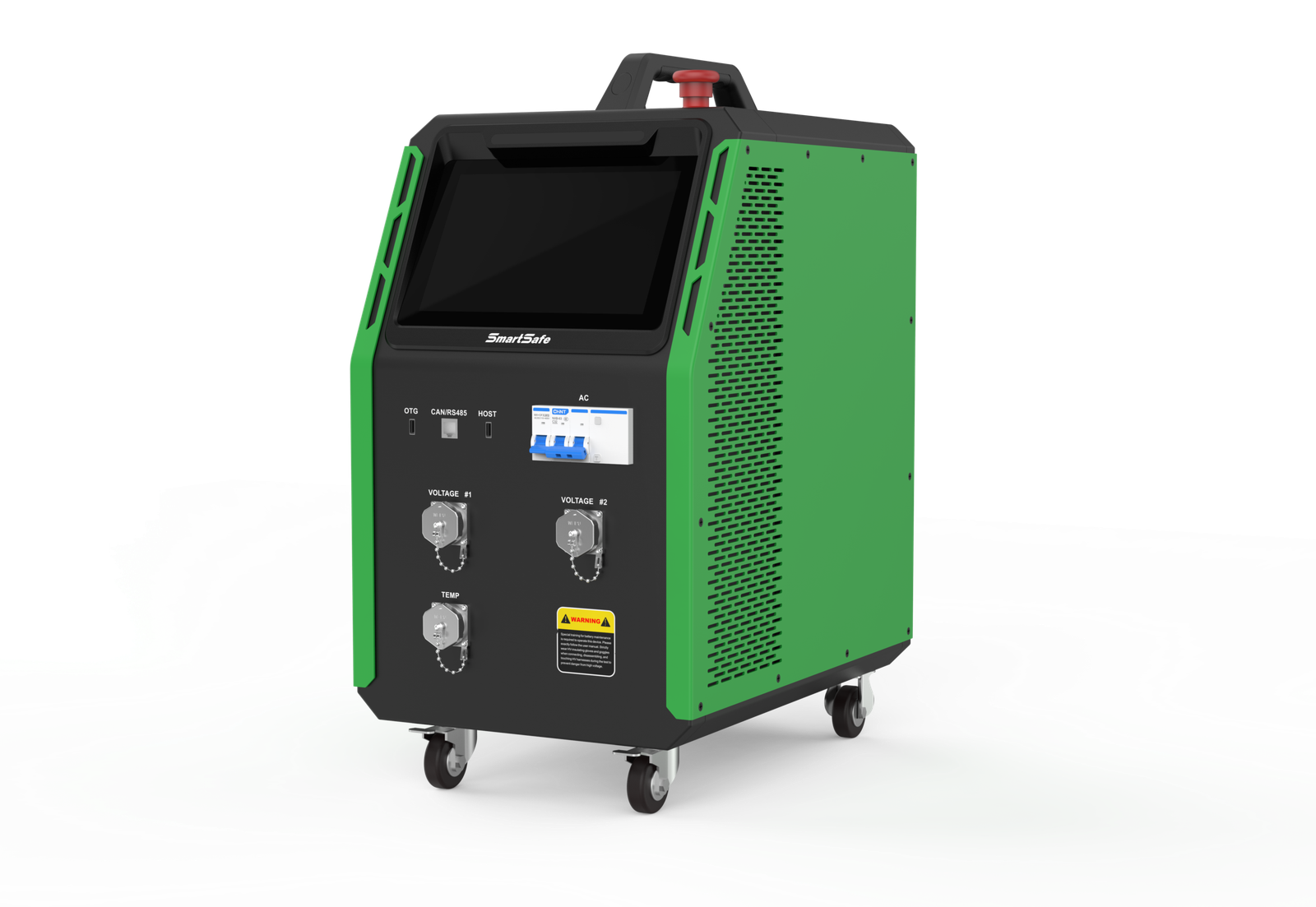

EB480 is mainly used for lithium battery pack charge & discharge test and equalizing maintenance, suitable for various voltage levels.
Working conditions: No corrosive, no explosive, no electrical breakdown air or conductive dust.
| Functions | Description | ✓ |
|---|---|---|
| Multi-Channel Intelligent Equalization | Supports simultaneous balancing of up to 48 battery cells, meeting the voltage balancing requirements of large EV battery modules. | ✓ |
| Manual & Automatic Equalization | Allows users to choose between automatic equalization or manually selecting specific battery cells for targeted balancing. | ✓ |
| Single Cell Repair | Features intelligent single-cell equalization control to accurately correct cell voltage differences and restore battery consistency. | ✓ |
| High-Precision Equalization | Provides voltage difference control accuracy of up to ±2mV, ensuring precise balancing and improved battery performance. | ✓ |
| Wide Battery Compatibility | Compatible with all mainstream lithium battery chemistries, including NCM, LiFePO₄, LTO, and other common EV battery types. | ✓ |
| Comprehensive Safety Protection | Equipped with multiple built-in protection mechanisms to ensure safe and reliable equalization throughout the maintenance process. | ✓ |
| Data Visualization & Recording | Provides real-time graphical battery data, full-process recording, data export, and OTA firmware upgrade support. | ✓ |
| Mobile App Connectivity | Supports mobile app pairing for real-time monitoring, allowing users to remotely view operating status, battery data, and equalization progress. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Single Cell Voltage Detection Accuracy | ±0.1% FS ±2mV (Max. Range: 5V) | Single Cell Current Detection Accuracy | ±1% FS ±0.05A (Max. Range: 5A) |
| Equalization Channels | 4 × 12 | Charge & Discharge Voltage Range | 1.8–4.5V |
| Battery Module Voltage Range | DC 0–112V | Charge & Discharge Power | 1200W Max |
| Charge & Discharge Current Range | 0.1–5A | Discharge Control | Constant Current Discharge + Constant Voltage Discharge |
| Charging Control | Constant Current Charging + Constant Voltage Charging | Power Input | AC 100–240V, 50/60Hz |
| Protection Functions | Overcharge protection, over-discharge protection, overtemperature protection, overcurrent protection, reverse polarity protection, and disconnection protection. | Display | 10.1-inch Touchscreen (1280 × 800 Resolution) |
