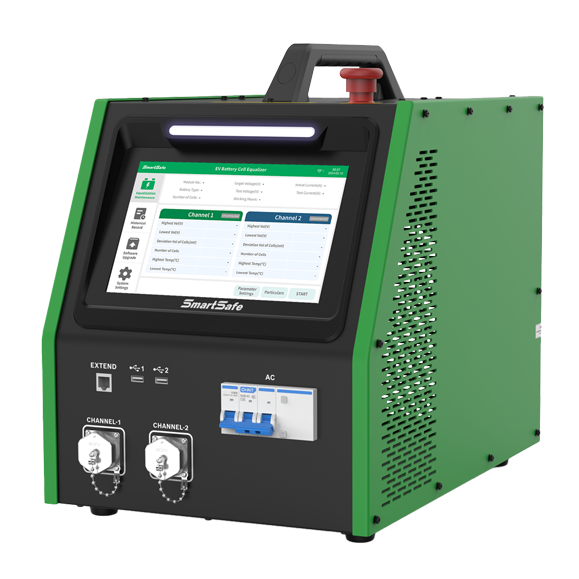

EB240 Battery Equalizer is a battery maintenance equipment specially designed for electric batteries developed by SmartSafe. It is used to quickly solve cruising range degradation caused by the difference in cell capacity due to inconsistent cell voltages. It has the characteristics simple operation, stable performance, strong anti harmonic ability and convenient carrying. It can be applied to power battery production, new energy vehicle enterprise R&D, new energy battery pack maintenance and other scenarios.
Supports synchronized balancing of up to 24 battery cells at the same time, improving battery consistency and maintenance efficiency.
Compatible with mainstream lithium battery chemistries, including ternary lithium (NCM/NCA), LiFePO₄ (LFP), and lithium titanate (LTO) battery packs.
Provides intelligent individual cell balancing within the battery module, preventing overcharging and over-discharging while improving battery performance, safety, and service life.
EB240 is mainly used for lithium battery pack charge & discharge test and equalizing maintenance, suitable for various voltage level.
Working conditions: No corrosive, no explosive, no electrical breakdown air or conductive dust.
| Functions | Description | ✓ |
|---|---|---|
| Balancing Maintenance | Supports charging, discharging, and balancing modes for mainstream lithium battery chemistries, including ternary lithium, LiFePO₄, lithium titanate, and lithium manganese batteries. | ✓ |
| Parameter Configuration | Allows preset configuration of operating modes, battery types, voltage thresholds, charging and discharging currents, cell series, and other key parameters. | ✓ |
| Multiple Safety Protections | Built-in overvoltage, undervoltage, overcurrent, output short-circuit, reverse polarity, and overtemperature protection ensure safe and reliable operation. | ✓ |
| Data Visualization | Monitors individual cell voltage, current, charge/discharge status, and capacity in real time throughout the balancing process. | ✓ |
| Data Analysis | Automatically stores historical balancing records and presents battery performance data in both graph and bar chart formats for easy analysis. | ✓ |
| Data Export | Supports exporting historical balancing records to a USB drive in Microsoft Excel format for reporting and documentation. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Input | AC 90–264V, 40–60Hz | Wireless Communication | Wi-Fi & Bluetooth (External Wi-Fi Antenna) |
| Power | 600W Max | Equalization Channels | 2 × 12-Pin |
| Charge & Discharge Voltage Range | 1.8–4.2V | Display | 7-inch TFT LCD (1024 × 600) |
| Voltage Detection Accuracy | ±0.1% FS ±2mV (Max. Range: 5V) | Communication Interface | SMA, USB Device |
| Charge & Discharge Current Range | 0.1–5A Max | Charge Control | Constant Current Charging + Constant Voltage Charging |
| Current Detection Accuracy | ±1% FS ±0.05A (Max. Range: 5A) | Discharge Mode | Constant Current Discharging + Constant Voltage Discharging |
| Battery Temperature Detection Accuracy | ±2°C (-25°C ~ 85°C) | Protection Function | Input overcurrent protection, input overvoltage protection, output overcurrent protection, and overtemperature protection. |
