High-voltage and low-voltage modules operate independently, providing dedicated protection for each output without mutual interference for safer and more stable operation.
Independent protection circuits continuously monitor the input, high-voltage output, and low-voltage output. The system automatically detects undervoltage, overvoltage, overcurrent, and short-circuit faults, then activates appropriate protection measures to safeguard both equipment and connected components.
Compatible with SmartSafe intelligent diagnostic terminals, enabling convenient remote control, monitoring, and operation for improved workshop efficiency.
| Functions | Description | ✓ |
|---|---|---|
| Low-Voltage Output | Provides adjustable DC output from 0–50V and 0–15A, with voltage and current precisely controlled through dedicated adjustment knobs. | ✓ |
| High-Voltage Output | Delivers adjustable DC output from 50–900V and 0–5A, allowing accurate voltage and current regulation for EV high-voltage system testing. | ✓ |
| Multiple Protection Functions | Features comprehensive protection including high-voltage input overvoltage and undervoltage protection, high-voltage output overtemperature and short-circuit protection, reverse polarity protection, plus low-voltage current limiting and short-circuit protection. | ✓ |
| Remote Control | Compatible with SmartSafe ST13, P01, and P03 diagnostic devices, supporting convenient remote operation through a Bluetooth connection. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | AC 100–240V @ 20A | Communication | Bluetooth (BT) |
| Maximum Power | 4000W Max | Display | LED Digital Display |
| High-Voltage Output | Voltage: 50–900V | Protection | Short-Circuit, Current Limiting, Overvoltage, Undervoltage & Overtemperature Protection |
| Current: 0–5A | Operating Temperature | -10°C ~ 65°C | |
| Low-Voltage Output | Voltage: 0–50V | Dimensions | 395 × 315 × 265 mm |
| Current: 0–15A | Weight | 11 kg | |

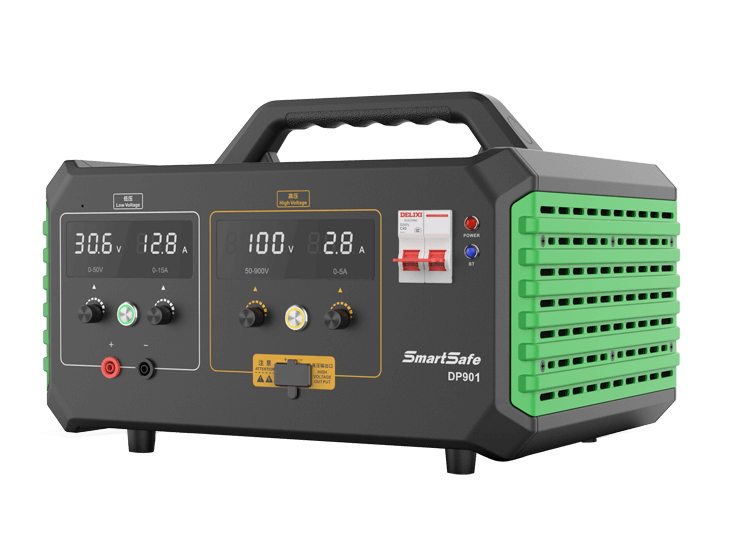

| Front Panel Controls | High Voltage: Current Knob, Voltage Knob, High-Voltage Switch | ||
| Low Voltage: Current Knob, Voltage Knob, Low-Voltage Switch | |||
