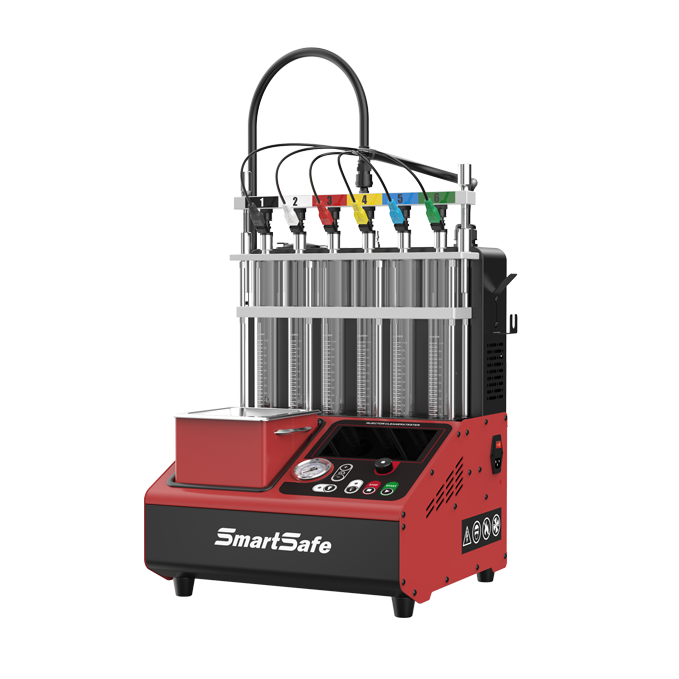

Supports cleaning and testing of PIEZO, GDI, and conventional fuel injectors under safe, controlled oil pressure for comprehensive injector servicing.
High-power ultrasonic cleaning technology effectively removes carbon deposits, varnish, and filter contaminants, restoring injector performance and fuel efficiency.
Powered by an advanced microcomputer control system that automates the cleaning and testing process while continuously monitoring key injector performance parameters.
Supplied with multiple cleaning adapters, allowing non-disassembly injector cleaning and maintenance for a wide range of vehicle models.
Features a bright 7-inch color display with an intuitive user interface, making operation simple, efficient, and user-friendly.
Simulates real engine operating conditions to evaluate injector flow, spray pattern, leakage, response time, and overall performance.
| Functions | Description | ✓ |
|---|---|---|
| Working Mode Selection | Automatically selects EFI (12V), GDI (65V), or PIEZO (140V) operating mode based on the injector type for accurate testing and cleaning. | ✓ |
| Ultrasonic Cleaning | Simultaneously performs ultrasonic cleaning on multiple injectors, effectively removing carbon deposits and contaminants. | ✓ |
| Low Resistance Testing | Supports low-resistance injector testing to detect short circuits and open circuits in fuel injectors. | ✓ |
| Uniformity / Spray Testing | Evaluates fuel injection consistency and spray atomization for each injector, allowing detailed observation through the illuminated background panel. | ✓ |
| Sealing Test | Tests injector sealing performance and detects leakage under simulated system pressure. | ✓ |
| Fuel Injection Quantity Detection | Measures injector fuel delivery under a constant 15-second injection cycle to verify flow accuracy. | ✓ |
| Automatic Cleaning and Testing | Simulates real operating conditions and automatically performs injector cleaning and testing according to preset parameters. | ✓ |
| Reverse Flush Function | Performs reverse flushing using a dedicated adapter to remove internal injector contaminants and residues trapped in the filter screen. | ✓ |
| Non-Disassembly Cleaning | Includes multiple non-disassembly cleaning adapters, enabling injector cleaning and maintenance without removing the injectors from the vehicle. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Host Power Supply | AC110V / AC220V, 50Hz / 60Hz | Simulation Speed Range | 100–9900 rpm (Step Length: 10 rpm) |
| Host Power | 500 W | Pulse Width | 0.1–25 ms (Step Length: 0.1 ms) |
| Fuel Tank Capacity | 2500 ml | Resistance Test Accuracy | 1% |
| Ultrasonic Cleaning Machine Power | 100 W | Resistance Test Range | 0–100 Ω |
| Working Pressure | 0.1–9 bar | Host Size | 412 × 398 × 550 mm |
