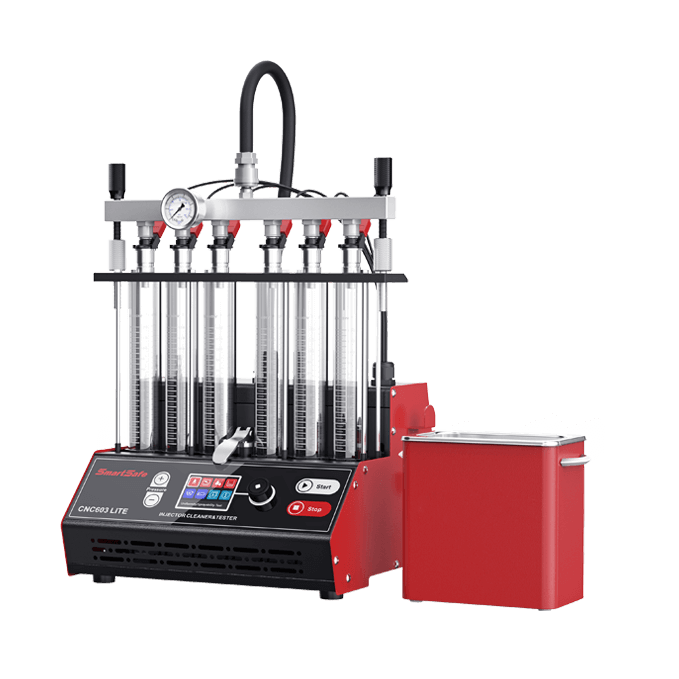

SmartSafe CNC603 cleaning injectors with ultrasonic, and can clean multiple fuel injectors at the same time. Combined with ultrasonic technology and microprocessor hydraulic control cleaning detection technology, CNC603 is an ideal tool for injector cleaning and testing.
Advanced ultrasonic cleaning technology thoroughly removes carbon deposits, varnish, and filter screen contaminants from fuel injectors, helping restore optimal fuel delivery and engine performance.
Powered by a microcomputer control system that automates the cleaning and testing process while providing real-time monitoring of key injector performance parameters.
Includes multiple non-disassembly cleaning connectors, allowing injector cleaning and maintenance for a wide range of vehicle models without removing the injectors.
Simulates real engine operating conditions to accurately evaluate injector flow, spray pattern, sealing, and overall performance for reliable diagnostics and maintenance.
About the full-function introduction of CNC603 ultrasonic fuel injector cleaner, SmartSafe provides you with a comprehensive solution, and it will be a good helper in your shop!
| Functions | Description | ✓ |
|---|---|---|
| Ultrasonic Cleaning | Simultaneously performs ultrasonic cleaning on multiple fuel injectors, effectively removing carbon deposits and restoring injector performance. | ✓ |
| Uniformity / Spray Testing | Evaluates fuel injection consistency and spray pattern for each injector, allowing detailed observation through the illuminated background panel. | ✓ |
| Sealing Test | Tests injector sealing performance and detects leakage under simulated system pressure. | ✓ |
| Fuel Injection Quantity Detection | Measures injector fuel delivery under a constant 15-second injection cycle to verify flow accuracy and consistency. | ✓ |
| Automatic Cleaning and Testing | Simulates real operating conditions to automatically perform comprehensive injector cleaning and testing. | ✓ |
| Reverse Flush | Uses a dedicated reverse-flush adapter to remove internal injector contaminants and filter screen residues for improved performance. | ✓ |
| Non-Disassembly Cleaning | Includes multiple non-disassembly cleaning adapters, enabling injector cleaning and maintenance without removing injectors from the vehicle. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | AC110V / AC220V, 50Hz / 60Hz | Pulse Width | 0.5–25 ms (Step Length: 0.1 ms) |
| Main Engine Power | 300 W | Timer Range | 1–10 min |
| Ultrasonic Cleaning Power | 50 W | Tank Capacity | 3 L |
| Revolutions Per Minute | 10–9990 rpm (Step Length: 10 rpm) | Size | 396 × 380 × 446 mm |
