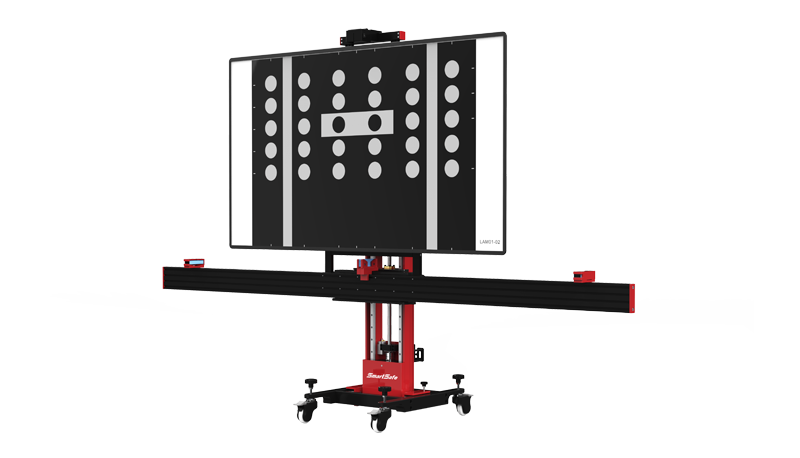

Displays front camera targets digitally, eliminating physical target-head installation. This improves ADAS calibration efficiency, saves storage space, and reduces target maintenance and transportation costs.
Equipped with a 75-inch high-definition LCD screen with 4K resolution. Digital targets are displayed at a true 1:1 scale for accurate calibration.
Supports horizontal angle adjustment, forward and backward movement, left and right fine-tuning, electric lifting, and manual beam adjustment. Centering and parallelism can be completed in approximately one minute.
Supports calibration for LDW, ACC, AVM, NVS, BSD, RCW, and other advanced driver assistance systems.
Optimized ADAS calibration software with clear, step-by-step instructions and illustrated guidance reduces training time and simplifies operation for technicians.
The software provides clear graphical tutorials and guided instructions, helping technicians complete calibration procedures more easily and accurately.
Generates comparison reports before and after calibration, making it easier to verify results, maintain service records, and share documentation with customers.
ADAS PRO+ V2 is an ultra-high-precision professional equipment that meets the needs of multi-brand and multi-system calibration at the same time, and provides more comprehensive for repair shops.
| Functions | Description | ✓ |
|---|---|---|
| Target Digitalization | Supports more than 30 digital front camera targets for comprehensive ADAS calibration. | ✓ |
| Equipment Fine-Tuning | Supports precise front-to-back and left-to-right angle adjustments for accurate target positioning. | ✓ |
| Equipment Lifting | Supports both manual and electric lifting modes, with a built-in laser rangefinder for accurate height positioning. | ✓ |
| Centering and Parallelism | The laser rangefinder ensures parallel positioning between the equipment and the vehicle, while the line laser provides precise center alignment. | ✓ |
| Level Adjustment | Use the integrated bubble level and base adjustment knob to quickly achieve accurate equipment leveling. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
① Vehicle type: confirm your brand and model
② Calibration types and space required by the target
③ Target cost: some targets are expensive and need to be factored into your decision-making
④ Shop conditions: workstation size, workstation lighting, workstation floors
By considering these factors, you will be able to make more favorable choices about how to select your ADAS targets!
| Parameters | |||
|---|---|---|---|
| Toe-in | ±20° | Clarity | 2160p |
| Camber | ±10° | Screen Size / Screen Ratio | 75 inches / 16:9 Widescreen |
| Caster | ±10° | Resolution | 3840 × 2160 |
| Kingpin Inclination | ±20° | Operating System | Android |
| Maximum Steering Angle | ±35° | Network Connection Method | Wi-Fi |
| Wheelbase | 1940–4600 mm | Memory | 1.5G + 8G |
| Track Width | 1290–1900 mm | Power Supply Voltage | 110–240V |
| Wheel Hub Diameter (Four-Point Wheel Hub Clamp) | 275–640 mm | Overall Power | 138W |
| Tire Diameter (Three-Point Tire Clamp) | 470–1100 mm | Standby Power | <0.5W |
