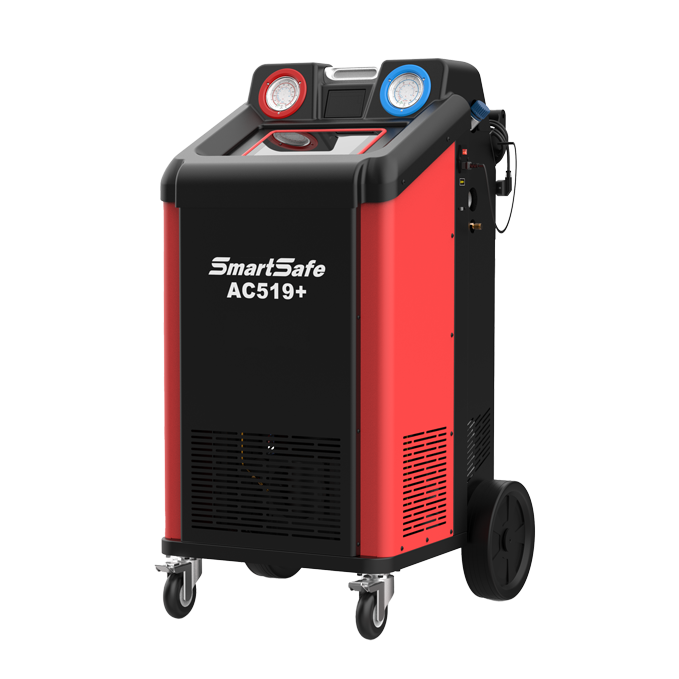

Equipped with an extensive automotive refrigerant database that is continuously updated free of charge, ensuring compatibility with the latest vehicle models.
Compatible with both R134a and R1234yf refrigerants, providing flexible servicing for a wide range of passenger vehicles.
Supports filling of PAG refrigerant oil, POE refrigerant oil, and UV leak detection dye, enabling complete A/C system maintenance.
Performs A/C pipeline leak testing and accurately identifies leak locations using UV fluorescent detection fluid for faster diagnostics.
Features a 128 L/min dual-stage vacuum pump, delivering faster evacuation performance and significantly improving workshop productivity.
Automatically performs refrigerant recovery, recycling, vacuuming, oil injection, refrigerant charging, and system cleaning with a single touch. Each function can also be operated independently when required.
Built on an integrated Android operating system and supports remote operation through the ST13 Smart Terminal, providing a more convenient and intelligent service experience.
| Functions | Description | ✓ |
|---|---|---|
| Air-Conditioning Pipeline Cleaning | Cleans A/C pipelines by removing sludge, powder, and other impurities. Replaces refrigeration oil more thoroughly to improve compressor lubrication and overall air-conditioning performance. | ✓ |
| Refrigerant Recovery | Recovers, purifies, and regenerates refrigerant from the vehicle's air-conditioning system before recycling it into the working tank for reuse. | ✓ |
| Vacuuming | Performs deep vacuuming of vehicle air-conditioning pipelines and service equipment pipelines to remove moisture and air. | ✓ |
| Leakage Detection | Detects leaks in the vehicle's air-conditioning system and accurately locates leak points using UV leak detection fluid. | ✓ |
| Refrigeration Oil Filling | Supports both manual and automatic oil filling with intelligent, high-precision dosing through the built-in electronic scale. | ✓ |
| Refrigerant Filling | Automatically charges refrigerant according to the preset filling quantity for accurate and efficient servicing. | ✓ |
| Automatic Mode | Executes cleaning, refrigerant recovery, vacuuming, oil filling, and refrigerant charging automatically based on preset parameters. | ✓ |
| Database | Includes a built-in automotive refrigerant database for quick model selection without manual parameter configuration. | ✓ |
| Supports printing of service reports and device operation results for maintenance records and customer documentation. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | AC110V / AC220V, 50Hz / 60Hz | Electronic Scale Accuracy | 10 g |
| Power | 1000 W | Compressor Capacity | 1/2 HP |
| Working Environment Temperature | 10°C ~ 50°C | Vacuum Pump Capacity | Dual-stage 128 L/min |
| Display | 10.1-inch Touch Screen | Working Tank Capacity | 22 kg |
| Oil Bottles | 4 (PAG, POE, UV, USED) | Filter Handling Capacity | 120 kg |
| Electronic Scales | 5 (Main Tank, PAG, POE, UV, USED) | Product Size | 1135 mm (H) × 660 mm (D) × 530 mm (W) |
