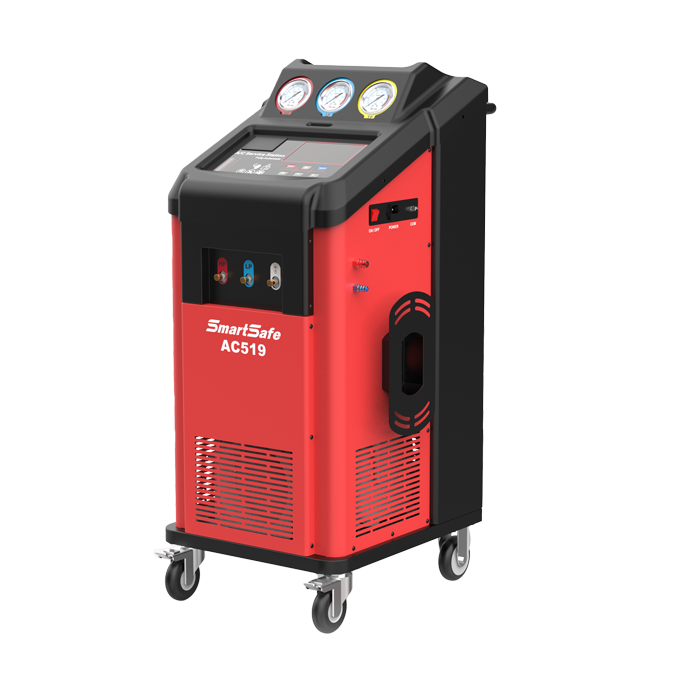

AC519 is a fully automatic intelligent automobile air conditioning maintenance equipment that integrates functions such as disassembly-free cleaning, refrigerant recovery, filling, and vacuuming. It can effectively improve the problems of poor air conditioning cooling effect, large compressor load, high noise, and high fuel consumption.
Equipped with an automotive refrigerant model database, allowing technicians to select the correct vehicle information without manual parameter entry.
Supports both R134a and R1234yf refrigerants, making the system suitable for servicing a wide range of modern vehicles.
Provides forward, reverse, and pulse-cleaning functions to remove contaminants more effectively and improve the overall cleaning performance of the A/C system.
Automatically performs cleaning, refrigerant recycling, vacuuming, refrigeration oil filling, and refrigerant charging with one click. Each function can also be operated independently when required.
The integrated printer supports printing service materials, operating records, working hours, and other relevant information for workshop documentation and customer reports.
| Functions | Description | ✓ |
|---|---|---|
| Air-Conditioning Pipeline Cleaning | Cleans air-conditioning pipelines by removing sludge, powder, and other contaminants. Replaces refrigeration oil thoroughly to improve compressor lubrication and enhance overall A/C system performance. | ✓ |
| Refrigerant Recovery | Recovers, purifies, and regenerates refrigerant from the vehicle's air-conditioning system before recycling it into the working tank for reuse. | ✓ |
| Vacuuming | Performs vacuuming of vehicle air-conditioning pipelines and service equipment pipelines to remove air and moisture. | ✓ |
| Refrigeration Oil Filling | Supports both manual and automatic refrigeration oil filling with intelligent, high-precision control through the built-in electronic scale. | ✓ |
| Refrigerant Filling | Automatically charges refrigerant into the vehicle according to the preset filling quantity for accurate servicing. | ✓ |
| Automatic Mode | Automatically performs pipeline cleaning, refrigerant recovery, vacuuming, refrigeration oil filling, and refrigerant charging based on preset service parameters. | ✓ |
| Database | Features a built-in automotive refrigerant model database with automatic parameter selection, eliminating the need for manual setup. | ✓ |
| Supports printing of service reports and device operation results for workshop records and customer documentation. | ✓ |
Looking for the right automotive workshop equipment? Whether you need product recommendations, a customized quotation, or technical guidance, our team is here to help. Contact us today, and we’ll provide the right solution for your business.
| Parameters | |||
|---|---|---|---|
| Power Supply | AC110V / AC220V, 50Hz / 60Hz | Recycling Capacity | Gas: 400 g/min, Liquid: 700 g/min |
| Main Engine Power | 700 W | Vacuum Pump Capacity | 2 Pa |
| Working Temperature | 10°C ~ 50°C | Tank Capacity | 12 L |
| Electronic Scale Accuracy | ±10 g | Filling Rate | 800 g/min |
